Reasons For The Vibration Of The Spindle Of 4 Axis CNC Router Woodworking Machine

This This 4 axis cnc router woodworking machine is a cost-effective intelligent CNC Carving Machinery, which integrates automatic positioning, optimized cutting, punching, slotting and engraving, so as to maximize the use efficiency of labor. wood cnc router engraving machine is a cost-effective intelligent CNC Carving Machinery, which integrates automatic positioning, optimized cutting, punching, slotting and engraving, so as to maximize the use efficiency of labor.

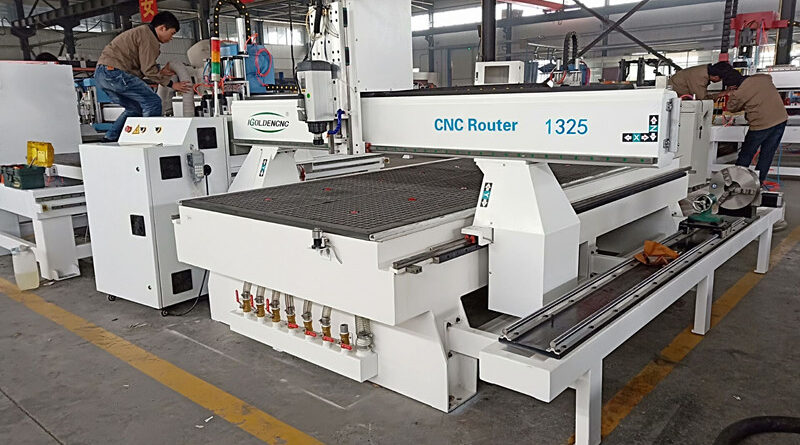

Rotary Axis CNC Router

General cnc woodworking router machines pindle jitter is caused by the low spindle speed of 4 axis cnc router woodworking machine, excessive chip speed or high product density. The vibration of the spindle of the cnc woodworking router machinemay be caused by the following reasons:

1. The level of the cnc woodworking router machineis not adjusted properly;
2, the clearance of the spindle bearing of the cnc woodworking router machineis too large;
3. The speed of the cnc woodworking router machineis too high;
Whether the spindle speed and processing cutting speed are within a reasonable range, like materials with relatively high engraving density, if the rotation speed is low and the processing speed is relatively fast, it will also cause the spindle to shake. At this time, the feed speed can be appropriately reduced.
4. The workpiece is asymmetrical, and the center of gravity does not coincide with the middle of the CNC woodworking cnc router machine;
5. Whether the parameters of the cnc woodworking router machinecontrol system (mainly pulse equivalent, linear acceleration, and curve acceleration) are correct. If the parameters are not correct, the machine will run unsteadily. In severe cases, the spindle will shake severely.
6. Whether the slider of the cnc woodworking router machinecan be loosened;
7. It is to see whether the spindle bearing is worn or not;
8. It depends on whether your graph is a small line segment.
9. It is caused by the loosening of the spindle motor and the motor base, and we need to tighten it with an Allen wrench;
10. The gap between the guide rails of the cnc woodworking router machineis too large or the strength of the tool bar is not enough (but you are talking about the vibration of the spindle of the CNC woodworking cnc router machine, which is unlikely).

The Solutions To Solve The Spindle Jitter Of The 4 Axis CNC Router Woodworking Machine Are As Follows:

1. When you find that there is a jitter situation, adjust the feed rate according to the possible situation above, and it is enough to adjust the feed rate. If it is a little slower, the quality can be guaranteed. The machine with the same material performance is relatively fast and accurate.
2. When the cnc woodworking router machineencounters such a failure, do not rush, stop the machine and analyze one by one. If you feel any difficulties, you can contact us in time and let us solve it in time.

 4 axis cnc router woodworking machine4 Axis CNC Router Woodworking Machine Application:

Woodworking industry: three-dimensional waved plate, cabinet door, craft door, overlaid wood composite door, screen, solid wood door, craft casement window, etc, such furniture product milling and engraving, also for shoe-cleaning machine, game machine cabinet and panel, mahjong table, computer table and auxiliary processing of panel furniture,mainly used for cabinet door, solid wood furniture, also can for MDF cutting & processing.
