Analysis Of Common Problems In The Use Of Wood CNC Router

Wood cnc router is CNC wood router related to the hand-held router by computer-controlled. And it is always be used for engraving various materials, such as wood, Acrylic, PVC board, MDF, marble, rubber board, plastics, glass, and foams, crystal, etc.

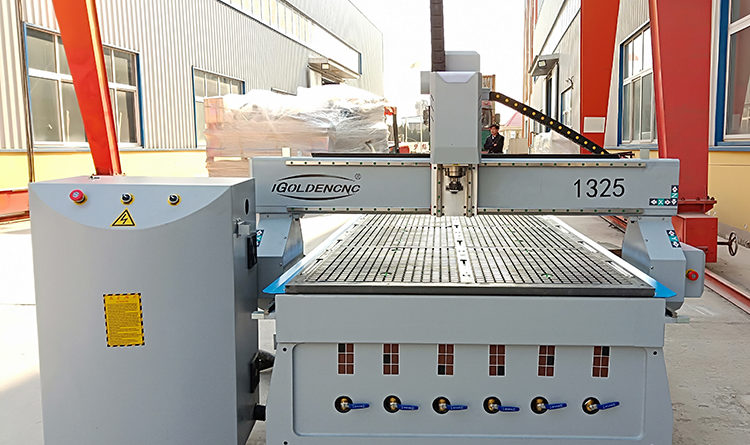

3 Axis 4×8 CNC Router Machine


CNC router actually is a 3D numerical control system. The professional design and typesetting software in computer performs the design and layout of graphics and texts, automatically generates processing path information, and transmits the tool path data to single-chip microcomputer through the USB interface or other data transmission interface. After the CNC system receives the path data and completes a series of functions such as display and user interaction, the input path information is converted into numerical control information by a specific algorithm, controller converts the information into a signal for driving the motor to control the engraving. So you can engrave various graphic or three-dimensional graphic texts designed on the computer to realize automatically engraving.

1. Tool vibration

The center of gravity of the tool is shifted, and the centrifugal force during rotation becomes larger, resulting in vibration during rotation. Solution: Lower the position of the chuck clamp (that is, try to shorten the length of the cutter head exposed at the bottom of the chuck). The chuck of the machine spindle is not stable (not clamped firmly), causing vibration.

Two. Short tool life

1. The tool used does not match the setting of the machine itself, and the machine parameters need to be adjusted.

2. The processing material is too hard. Solution: It is recommended to use imported tools with better tool materials.

Three. Single-edged knives are loud when used

In terms of structure, the single-edged tool has a blade on only one side, so the processing efficiency is slightly lower. Solution: appropriately reduce the rotation speed, check whether there are foreign objects in the chuck or whether there is any problem with the fixing device.

Four. The machined surface is not smooth, white edges, and wrinkles

1. The blade wears too quickly and becomes unsharp (white edges appear).

2. The workpiece is not fixed properly. (White edges and wrinkles appear) Solution: Check the fixed condition of the workpiece and the tool, and re-install the clamping.

3. The rotation speed does not match the movement speed (white borders appear at the beginning) Solution: Adjust the ratio of the rotation speed to the movement speed.

4. The tool type is incorrectly selected, and different materials are selected according to the characteristics of the material.

Five. Blade collapse

1. There is foreign matter in the processed part. Solution: Check the material content of the processed part and whether there are other objects on the surface of the processed part.

2. The workpiece is not fixed properly, and the jitter is very large. Solution: Check the fixing condition of the processed parts, and fix the reason again if there is any problem.


CNC Wood Carving Machine


Wood CNC Router Features

) Designed with rotary device, it can process the cylinder wood carving patterns, furniture legs, escalators, etc..
2) With the heavy duty thicker and bigger welded steel tube frame, it makes the machine work more stably.
3) Adopting German Siemens control system and servo motor driver system, which ensure the machine with a longer service life.

Application scenarios of linearly-arranged automatic tool-changing CNC machining centers for woodworking:

1. Furniture: kitchen cabinets, closets, office furniture, MDF doors.
2. Woodworking: speakers, game cabinets, computer desks.
3. Panel processing: insulation parts, plastic chemical components, PCB, automobile inner body, stairs, epoxy resin, ABS, PP, PE, etc.
4. Decorations: acrylic, PVC, MDF, artificial stone, plexiglass, plastic and soft metals such as copper and aluminum
