Cabinet Making Machine Automatic Cutting Production Line

There is no difference in appearance between the cabinet making machine and the ordinary cutting machine, but the actual details are quite different. The advantage of the automatic cabinet making machine is that the parts are not visible, and a special saw blade spindle for the automatic CNC cutting machine is added to the spindle. The traditional door panel three-in-one engraving can be completed, so the automatic CNC cutting machine has been widely promoted.

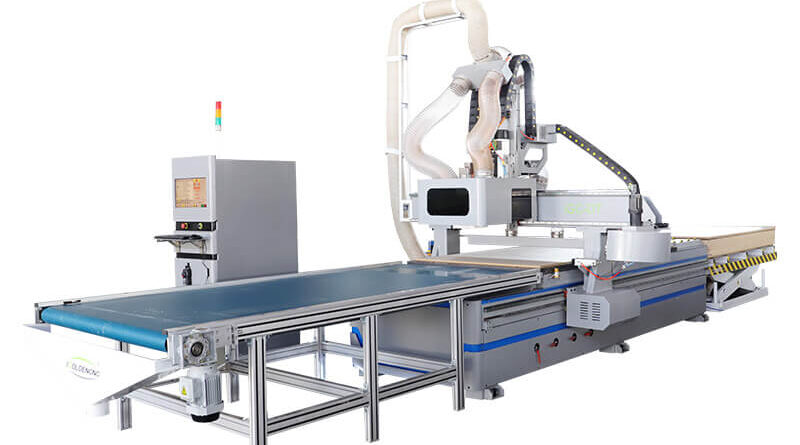

Automatic Wood Cabinet Making CNC Router

Today, let’s take a look at the machine performance characteristics of the automatic CNC cutting machine:
Spindle: The air-cooled automatic tool change spindle is adopted, and the special saw blade spindle for Lamino is also added.
Adsorption table: The auxiliary loading table behind the vacuum adsorption table is used, and the plate can be automatically fixed directly on the worktable of the engraving machine, saving time;
Bed structure: new type large square tube bed, CNC punching, high precision, reliable and durable performance;

In-line tool magazine: Twelve tools are in-line automatic tool changer, the twelve tools can be replaced freely, saving tool change time and high efficiency;

Vacuum cleaner: The double-bag vacuum cleaner is used to reduce dust, and the cleaning force is large, which increases the working efficiency of the vacuum cleaner;
The addition of LED: LDE lights makes the product more concise and beautiful, and sublimates the visual effect;
The automatic cabinet making machine is mainly used for the manufacture and production of panel furniture. The loading platform of the automatic numerical control cutting machine can be said to be one of the most fully functional CNC cutting machines at present. It adopts 12 straight-row tool magazines and a special saw blade spindle for non-hole process, which saves tool change time, has high efficiency and good stability.
12-tool in-line tool magazine: It can realize 12-tool automatic tool change processing without manual tool change at all, and meets various processing requirements such as panel furniture cabinets, cabinet doors drilling, cutting, and engraving.
Table structure: The whole-page vacuum adsorption table (6 zones) has good adsorption force, can adsorb plates of different sizes, and can be processed without running.
Automatic feeding platform: equipped with automatic feeding platform for feeding, auxiliary feeding platform to adjust the height, automatic mixing, saving time and effort.
iGolden CNC automatic cabinet making machine is suitable for slotting installation slots required for furniture in different invisible links, and can also process installation holes for two-in-one and three-in-one connectors of ordinary panel furniture, which can complete cutting, drilling, Cutting, chamfering, engraving and other processes. Suitable for diversified, complex, customized production and processing.


ATC Nesting CNC Machine with Gang Drilling


Recommended equipment: follow-up in-line automatic tool change machining center

1. Equipped with 9.0kw air-cooled high-speed electric spindle with automatic tool change as standard, built-in fan cooling and high-temperature grease lubrication. The body is made of high quality stainless steel. Imported ceramic ball bearings are equipped with dust sleeves, precision-ground inner holes, high-precision chucks and dynamic balance nuts. 0 seconds automatic tool change, ISO30 arbor end, double-layer sealing and air-sealing structure, better dustproof effect, low noise, smooth body, not easy to rust, and high rotation accuracy. The bearing has a long service life, high speed and low turbulence, stable operation, no chipping during processing, high spindle precision, and maintenance-free, which effectively improves work efficiency.
2. High-precision transmission system: Taiwan HIWIN guide rail, Japan Yaskawa servo motor drive, Japan SAMPO reducer, Taiwan Province TBI ball screw. The positioning accuracy can reach 0.02 mm, the repeat positioning accuracy can reach 0.02 mm, and the maximum idle speed can reach 50,000 mm/min. Improve transmission accuracy and service life, reduce failure rate and maintenance cost, and ensure operator safety.
Scope of application:
> Production and processing of various furniture: cabinets, wardrobes, office furniture, computer desks, children’s furniture, panel furniture, cutting, slotting and perforating, decorative hollow frames, production of soft bag backdrops, etc.;
>Wooden door and furniture decoration industry: solid wood composite door, cabinet door, large area panel carving, solid wood, panel furniture carving, solid wood art mural, etc.;
> Processing of wood products: clocks, electronic countertops, sporting goods and equipment;
> Musical instrument industry: three-dimensional surfaces and shape cutting of engraving musical instruments;
> Arts and crafts industry: photo frames, jewelry boxes.
