Four Processes CNC Wood Router

Hot Sale Four-process Woodworking Engraving Machine for Furniture

What is the Four-process Woodworking Engraving Machine?

The Four-process Woodworking Engraving Machine is suitable for engraving and milling of 3-4 types of flower knives. It can install four different tools at one time to achieve four-processing easy automatic tool change. It is mainly used for various large-area plate carving and door and window processing.

The four-process engraving machine is a simple ATC CNC router. It has the advantages of low procurement cost, simple operation and complete functions. Four different cutters can be installed to complete various processing functions such as cutting, engraving and drilling at one time. The error of manual tool change is reduced, and the production efficiency is correspondingly improved. It is an ideal choice for large production enterprises.

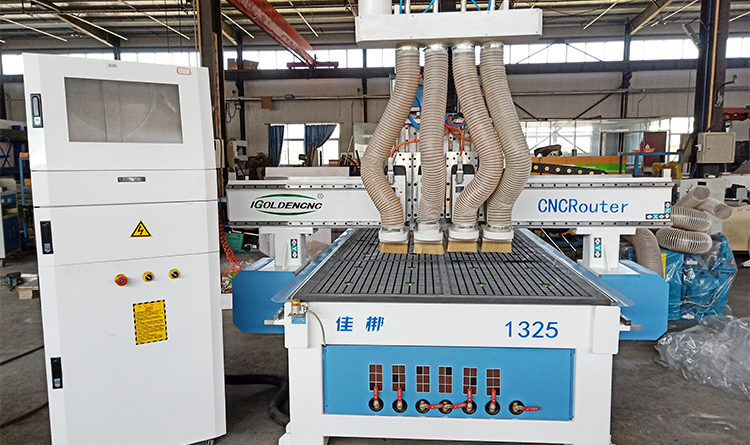

Four Processes CNC Wood Router

The Method of Use 4 heads Wood CNC Router

  1. The 4 heads wood CNC router machine is suitable for engraving and milling of 3-4 types of flower knives.
  2. It can install four different tools at one time to achieve four-processing easy automatic tool change.
  3. It is mainly used for various large-area plate carving and door and window processing.

Feature of the Four-process Engraving Machine

  1. Four spindles use different cutter heads to work in sequence to complete a series of processes such as cutting and engraving, which greatly improving the processing efficiency.
  2. The machine is equipped with a pushing device, which can realize automatic cutting, reducing the time for manual cutting and correspondingly improving the processing efficiency.
  3. Use Newgear reducer with the characteristics of low noise and no need to replace and maintain, which ensuring that the machine has high output torque density while running at high speed, greatly improving the accuracy of the machine in high-speed operation.
  4. Adopting Baoyuan 2200 control system and equipped with computer display, it has the advantages of simple and convenient operation.
  5. The XYZ axis adopts imported large-size guide rails. The large-size guide rails ensure the high-speed and stable operation of the machine, and also ensure a higher processing accuracy.

Parameter

XYZ working are: 1300*2500*200mm

XYZ travel positioning accuracy: ±0.05mm

Drive system X-Y axis: Rack actuation

Drive system Z axis: Ball screw

Spindle power: 3KW/4.5KW/6KW

Max velocity: 50m/min

Max working speed: 20m/min

Spindle speed: 0-24000rmp

Work mode: Step(optional servo)

Working voltage: AC220V / 380V-50HZ

Four-process Wood Engraving Machine4 Spindle CNC Router Machine

Application of the Four-process Wood Engraving Machine

Wood door and furniture decoration industry:

solid wood compound door, cabinet door, large area plate plane carving,solid wood carving, board furniture carving, antique mahogany furniture carving, solid wood art fresco carving and other industries.

Wooden handicraft processing:

clock frame, process photo frame, calligraphy card, electrical counter surface, sports equipment, thin aluminum plate carving.
