Blog

CNC router Machine price

CNC router Machine price in China?

IGOLDEN offers favorable series CNC router for in door & outdoor best sign & graphic cutting. Machines are designed, engineered and built for 3D carving, flat cut-out, engraving, inlays and dimensional signage & lettering.A great option for the sign, graphic, printing, displaying, advertising industry.

CNC router Machine price

Meet Specific Client Expectations about CNC router Machine

Now sign buyers want signs that are innovative, one-of-a-kind, and visually appealing. Their success, like yours, is determined by how effectively they stand out. A CNC router for sign-making generates detailed, one-of-a-kind, aesthetically appealing signage that would be difficult to achieve with traditional methods.

Boost Productivity about CNC router Machine

Traditional hand tools may get the job done when producing customized signage, but not as quickly as a CNC router machine. The combination of high speed, efficiency, specialization, precision, and, most importantly, less labor hours that comes with introducing a CNC router into your sign manufacturing all adds up to a stronger bottom line for your company.

Boost Your Flexibility about CNC router Machine

As a signmaker, you’ll need a CNC machine that can do more than a typical woodworking router. Our CNC digital cutter A series may be used for routing, digital cutting with a tangential knife, and contouring cutting with a vision system, unlike a typical router.

CNC router Machine price

CONFIGURATION

CNC Router Frame

OMNI cnc router machine welded steel tubes thickness is at the top of cnc router industry in China. We build 2′ * 3′, 4′ * 4′ , 4′ *8′ to 6′ * 10′ and custom size to meet your unique demand on sign cut

Spindle

2.2kw, 3kw, 4.5kw, 6kw, 9kw spindles for  your option. Watercooling type usually with 3 years lifetime, HSD or Hiteco aircooling spindle lifetime is 6 years at least. If you are with enough budget, still suggest you choose HSD or Hiteco spindle.

Gantry

The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting to ensure your high quality sign cutting performance.

Control Cabinet

IEC standard wiring, CE standard electrical device, and sheethed cable connection are all European IEC standards. The electrical components are all contained. In the event that service is necessary, the overall wiring architecture is labeled so that the client may simply explore the cabinet.

System Controller

Handheld controller or MACH3 or Syntec system are optional. Easy installation and operation. According to your preference and budget, choose the suitable system for yourself.

CNC router Machine price

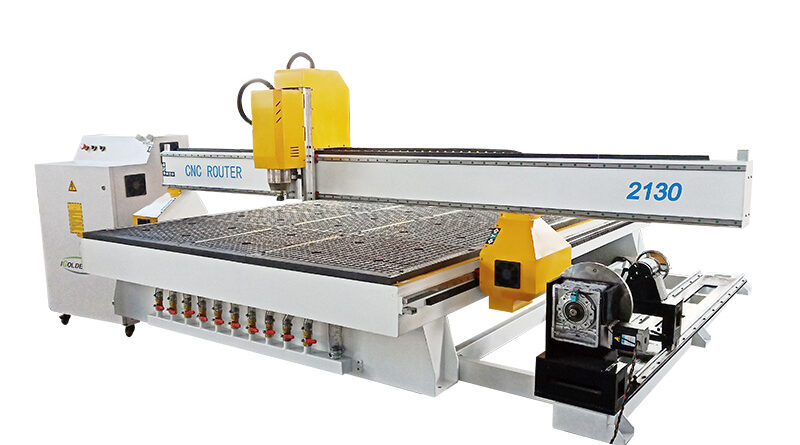

Parameter of the 3 axis CNC Router

XYZ working size 2100*3000*300mm
Rotary axis 500*2000mm
Structure Seamless steel welded, Heavy T shape structure
Table Vacuum + T slot table structure
XYZ transmission XY axis is helical rack and gear,Z axis Ball Screw
Guide rail Famous Taiwan Hiwin Line 25mm Square guide way
Spindle 5.5kw HQD Water cooled spindle
Spindle collet 5pieces(3.175mm, 4mm, 6mm, 8mm, 12.7mm)
Inverter Fuling 5.5kw
Motor step motors
Driver Leadshine driver
Controller system Famous DSP Controller system
Software Artcam,powermill
Router bits 20pcs for free
Automatic Tool sensor Yes
Lubrication BY manual
Dust collector 2.2KW
Delivery time 25 working days
Packing weight 1500KG
Voltage 3 phase 380v,50/60HZ
