fiber laser cutting machine

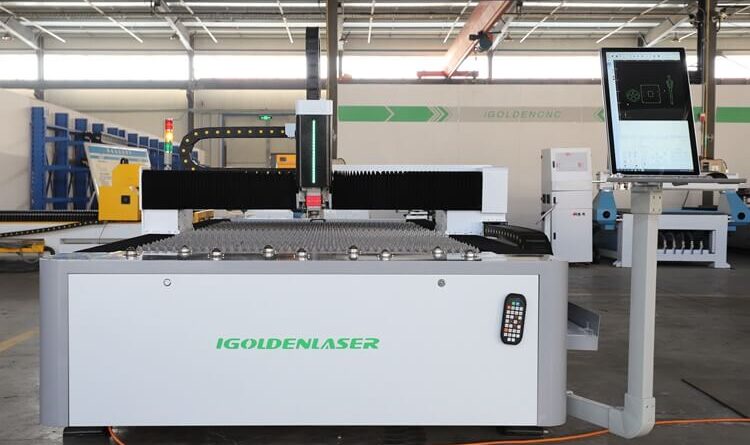

1000W Fiber laser cutting machine for metal

1000W Fiber laser cutting machine

Metal sheet laser cutting machine is kind of optical mechatronics product that composes of fiber laser source, laser cutting head, control system, cooling system, servo motor, welded frame, etc.

1000w metal sheet laser cutter adopts the structure of fixed workpiece and movable gantry with three axis control of the CNC machine. The X, Y axis linkage achieves plane cutting feed while Z axis floats and tracks workpiece surface. Sheet metal laser cutting is especially suitable for stainless steel sheet, iron plate, diamond saw blade and other materials, which has good processing effect for all kinds of hard and brittle alloys. In sheet metal industry, laser cutting technology can partly replace punch and wire cutting.

The product is mainly used for cutting carbon steel, silicon steel, stainless steel sheet, aluminum alloy, titanium alloy, galvanized plate, pickling plate, aluminum zinc plate, copper and other metal materials.

Metal Plate Laser Cutting Machine equipment parameters

Model iGR-F 3015 iGR-FH 3015
Working area 3050*1530mm
X axis stroke 1530mm
Y axis stroke 3050mm
Z axis stroke 80-120mm
Accuracy X, Y, Z axis positioning accuracy 0.03mm
X, Y, Z axis repositioning accuracy 0.02mm
Speed X, Y axis max. running speed 80m/min 120m/min
Z axis max. running speed 50m/min 80m/min
X, Y, Z axis max. accelerated speed 0.8G 1.5G
Power supply Phase 3
Nominal voltage 380V
Frequency 50/60Hz
Machine body Max. working loading 500kg 800kg
Body weight 3200kg 4700kg
Size(L*W*H) 4450*2290*1920mm 4630*2470*2000mm
Laser power 1000w/ 1500w/ 2000w/ 3000w 1000w/ 1500w/ 2000w/ 3000w/ 4000w/ 6000w
Worktable optional 4000*1500mm/ 6000*1500mm 4000*2000mm/ 6000*2000mm/ 6000*2500mm

Full Protective Fiber Laser Cutting Machine

Although low-power metal laser cutting machines have low power and are more suitable for thin plate cutting, they also have the advantages of low cost and small footprint. In the following industries, low-power metal laser cutting machines have been more widely used application:

1. Advertising industry. The advertising industry needs to process stainless steel-based metal materials into different billboards, and in order to achieve a good promotion effect, the cutting requirements are more flexible. Therefore, laser cutting machines have also been widely used in this industry. The use of low-power laser cutting machines can not only complete the cutting requirements of advertising companies, but also provide more diversified cutting patterns;

2. Kitchenware industry. It is not difficult to find that kitchenware products are becoming more high-end, which is also related to the application of metal laser cutting machines. The processing speed and accuracy of metal laser cutting machines are more advantageous than traditional cutting processes, ensuring fast speed and high quality. Production of products. The metal materials used in kitchenware products are generally thin, so low-power laser cutting machines have greater advantages in cutting thin plates.

Although the thickness of the low-power metal laser cutting machine is not as good as that of the high-power metal laser cutting machine, it is the so-called “use the best”. In some specific industries, the low-power metal laser cutting machine is still a very important process. equipment.
