Automatic Wood Cabinet Making CNC Router

Automatic loading and unloading machine

The table design, the roller table can make it easier to enter and exit the whole sheet, and configure the sheet positioning system.

The vacuum adsorption design is equipped with a universal vacuum suction cup, which can quickly control the displacement of the plate, and is combined with a vacuum regulating valve.

Push material design, the material push design can quickly push out the completed work piece, and at the same time absorb the next piece into the processing area for positioning and processing.

Reduce labor intensity, improve work efficiency, and reduce labor costs.

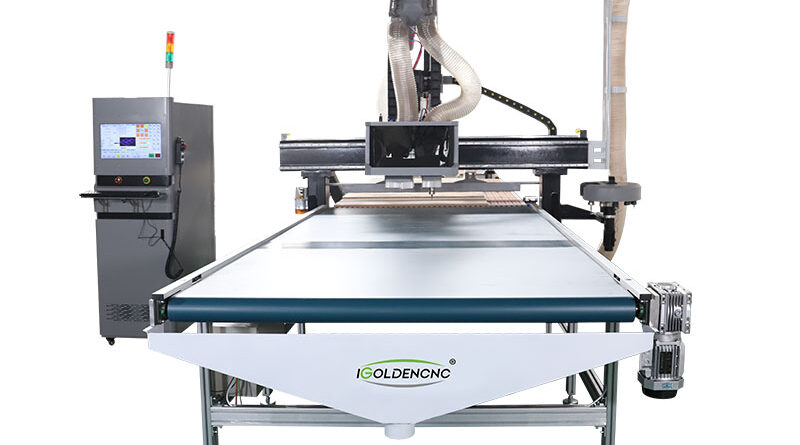

Automatic Wood Cabinet Making CNC Router

Take the following picture as an example to introduce the performance characteristics of the automatic loading and unloading machine

◆The processing table adopts thickened tempered steel plate to increase the stability of the whole machine for years of use.

◆The double-layer adsorption table is equipped with a 7.5KW water-type vacuum pump to make the air pressure more uniform and ensure that the small plate does not run out of material.

◆Taiwan high-precision square linear guide, with high precision and long service life.

◆The overall cast iron side plate is treated with high temperature tempering to prevent deformation of the side plate and affect the traveling accuracy of the Y-axis.

Automatic Loading And Uploading CNC Router

Two independent work surfaces ensure that the machine can cycle without downtime, and while the machine is working at one station, the operator can load and unload material at the other.

◆Taiwan high-precision square linear guide, with high precision and long service life, the use of vertical rail technology can better ensure the stability of operation.

◆Using servo motor with imported reducer, large torque, to ensure the processing speed and stability of the equipment.

◆Automatic memory function, there is no need to re-check the mechanical origin when the machine is turned on again, which ensures the accuracy of the origin position.

◆The double-layer adsorption table is equipped with a 7.5KW vacuum pump to make the air pressure more uniform. There are 200-300 suction holes on the table to ensure that the small plate does not run out of material.

◆The processing table of the equipment is made of thickened tempered steel plate, the table is not deformed or sagged, and the engraving flatness and verticality are high, which increases the stability of the whole machine for years of use.

The scope of application of double-station CNC wood cutting machine and automatic loading and unloading cutting machine are:

Furniture industry: panel furniture, cabinet wardrobe, office furniture, custom furniture.

Cutting and carving of wooden doors, cabinets and solid wood furniture;

Wood products: speakers, game cabinets, computer desks, sewing machines, musical instruments.

Two different devices also need to be selected according to their actual situation~
