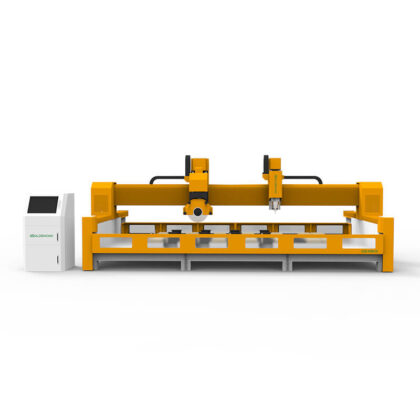

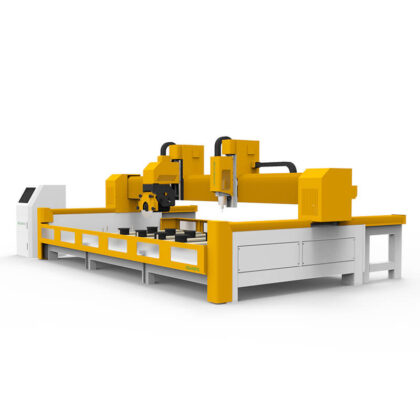

CNC Stone Cutting And Polishing Machine for Quartz
The stone cutting and grinding machine developed by IGOLDENCNC, combined with efficient sawing ability and accurate edging ability, is the ideal choice for kitchen countertop manufacturing. With automatic lifting door, automatic positioning, recycling water and other functions.It can cut square, round, horse belly side cutting, 45 degree chamfering cutting, taishung basin/platform basin/under basin cutting and other heterosexual cutting.
If you need more detailed information, please inform us as soon as possible.
Description
Stones Cutting and Polishing Machine
Stone CNC for cutting/polishing machine is its multi-axis cutting capability, which enables it to make cuts in multiple directions, including miter, bevel, and compound angles.To realize complex machining of heterologous surface, set cutting, milling, drilling multi-function in one;
This makes it perfect for cutting complex shapes and designs in a wide array of materials like stone, glass, metal, and plastic.
It can open basin hole, grinding edge, water blocking before and after grinding, Yin Angle drilling and milling, flat relief engraving and so on.
This machine can be customized according to customer needs, for each customer to develop efficient solutions.
Cutting/polishing 2 in 1
The 5.5KW saw blade’s cutting capability and the 5.5KW spindle’s precise edging capability make it ideal for kitchen countertop manufacturing.
Multiple processing functions
A variety of ways to cut, can cut round, square, horse belly edge, shade Angle drilling and milling, milling cutter hole, 45° miter can be convenient processing.
Stone cnc Table
Wood +PVC+ T-slot + automatic positioning
Precise
Standard water tank, with water circulation function.
CNC Stone Cutting & Polishing Machine Advantage
- The use of sophisticated accessories, greatly improve the reliability and stability of the machinery, to ensure the continuous operation of the machine;
- The whole high quality steel is welded and tempered to ensure the long-term use of the machine without deformation;
- Automatic touch man-machine interface, intuitive operation, simple and convenient;
- Can be rotated 0°-360° and inclined 45°;
- To realize complex machining of heterologous surface, set cutting, milling, drilling multi-function in one;
Stones Cutting and Polishing Machine Parameter
| Technical index | Parameter |
| Model | iGS-H3015 |
| X-axis travel | 3000mm |
| Y-axis travel | 1500mm |
| Bed | Heavy bed |
| Beam | Steel structure |
| Table | Wood +PVC+ T-slot +Automatic orientation |
| Guide rail | Japan Pantoscopic |
| Rack | Japan Pantoscopic |
| A axis | 45° |
| C axis | 360° |
| Saw blade motor power | SNT5.5KW |
| Saw blade diameter | 350mm |
| Spindle power | 5.5KW |
| Reduction box | SHIMPO |
| Control system | ChengDu |
| Standard function | Automatic lifting door, automatic positioning, suction cup, sink (water circulation) |
| Standard preparation process | It can cut square, round, horse belly side cutting, 45 degree chamfering cutting, taishung basin/platform basin/under basin cutting and other heterosexual cutting. Can open the basin hole, grinding edge, grinding before and after water, Yin Angle drilling and milling, flat relief lettering, drain tank, etc., water tank circulation. |
CNC Stone and Marble Cutting& Carving Application
The Quartz Stone CNC Machining Center for Stone and Marble Cutting& Carving is good at cutting, milling, chamfering and edging quartz, marble, artificial stone and slabs in regular and irregular shapes. It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling.
Applicable Material:
This quartz cnc machine is suitable for quartz stone, marble stone, granite stone, artificial stone slabs, jade, bluestone, black stone, etc.
Applicable Industry:
This stone machining center is widely used to process cabinet artificial stone, quartz stone countertops, wash basins, tea trays, European style edging, kitchen countertops, bathroom countertops, bar island countertops, coffee table countertops, stone countertops, TV countertops, and other heterosexual stone.
