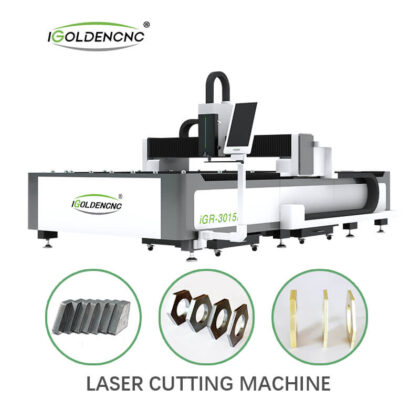

CNC Metal Laser Cutting Machine

Item No:: iGR-F

The fiber laser cutter, based on functions, falls into the laser cutting machine for metal sheet, fiber laser tube cutting machine, and sheet and tube laser cutting machine. Each model of the fiber laser machine has multiple specifications and configurations.

Category: Laser Machine>>Laser Cutters
Response time: Within 1 hour
Supply Ability: 200 sets/month
Price Range: $4850-$163500

Get Latest Price:

Description

Fiber Laser Cutting Machine

Laser cutting can also produce high quality cut edges, usually without further cleaning, processing or finishing, thus reducing the need for secondary processing. Igolden laser, as leading manufacturer and supplier of fiber laser machines in China, will provide best quality and factory price laser cutting machine for metal sheets and tubes, including stainless steel, carbon steel, aluminium, copper, galvanized sheet, mild steel, corten steel, silver, gold, ect.

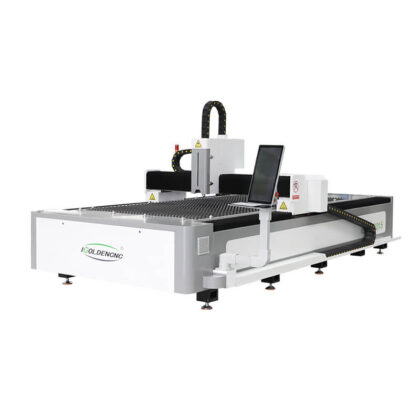

Flatbed CNC Sheet Metal Laser Cutting Machine is an ideal entry level laser cutter without any high purchase cost or training cost. With easy operation and simple maintenance, the flatbed fiber laser cutting machine provide users powerful cutting ability and efficiency. Therefore, it is a good choice for users to have an economical processing.

Features of Fiber Laser Cutting Machine

Heavy-duty Welding Bed

The heavy-duty welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1000kg. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once.

Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail.

It reduces the loss of the equipment when it is used and keeps the precision of the machine for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.

Aero-aluminum Integrated Beam

High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.

Fast speed. Aluminum alloy has the features of lightweight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to the high-speed cutting of various graphics on the basis of high precision.

High efficiency. The lighter weight beam can ensure the rapid operation of the equipment, improve the processing efficiency, and at the same time ensure the processing quality. Not only can the high-speed operation of the laser cutting machine be guaranteed, but also the accuracy and efficiency of the cutting processing.

Effectively improve the service life and accuracy of the laser cutting machine, reduce time cost and reduce time loss. And after using the same time limit, the aluminum beam can ensure the cutting accuracy to the greatest extent, and at the same time, it can alleviate the kinetic energy of laser head during high-speed movement.

Auto-focus Laser Cutting Head

The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position within 20mm. The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The compound lens group equipped with D28 integrates the light beam and optimizes the optical and water-cooled design so that the laser head can work stably for a long time.

Autofocus saves focusing time and improves work efficiency by 10 times.

Extend service life, by optimizing the structural design of the cutting head, extend its service life.

High-precision Transmission System

The positioning accuracy of the machine tool is 0.02mm, and the repeated positioning accuracy is 0.02mm.

Taiwan T-win Rack Rails

Japan YASKAWA Servo Motor

Japan SHIMPO Reducer

Vertical LCD Display Screen Design

The vertical screen display is different from the traditional horizontal screen display. The response speed is 8ms, the resolution is ???, the screen ratio is optimized to ???, the power consumption is low, and the control software interface and human browsing habits are better adapted. In addition, it has a high brightness level and low reflectance, and the sturdy glass panel has sturdiness and durability.

For the fiber laser cutter, the price is different according to the function and configuration. Please contact us for more details.

It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.

The metal laser cutter is only for metal sheet, such as stainless steel, carbon steel, copper, aluminum, iron, galvanized, etc..


CNC Sheet Metal Laser Cutting Machine advantages

1. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like Steel, Iron, Aluminum Plate, Carbon steel, Stainless steel, Cooper, and galvanized sheet .
2. Independent electric control cabinet with strong and weak electric separation, to make your maintenance more convenient and safe.
3. Aviation aluminum alloy beam to ensure the running speed is up to 150m/min.
4. World-class components like guide rails and racks to guarantee the cutting accuracy.
5. The strong iron flatbed to keep the machine for 20 years without distortion.
6. When considering sheet metal laser cutting prices, laser cutting has a higher quality cutting edge, it saves money and time cost if we count all cost all.


Application of Fiber Laser Cutting Machine

CNC Metal laser Cutting Machine is suitable for quality cutting of stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.



Fiber laser cutter VS CO2 laser cutting machine

CO2 laser cutting machine is also a commonly used laser cutting machine for industrial purposes. But in actual use, there are big differences between a CO2 laser cutting machine and sheet metal laser cutting equipment. The differences mainly include the following aspects.

1. Laser generator

The CO2 laser generator is a kind of gas molecular laser. It uses CO2 gas as the medium and transmits the laser beam through reflective lenses. However, fiber laser cutting machines work with diodes and fiber optic cables for beam transmission. The reflective lenses in the CO2 laser technology have to act at a certain distance. While the CNC fiber laser is not subject to such limitations.

2. Electro-optical conversion rate

Fiber laser cutting system is the latest laser technology. Its solid-state laser generator is more efficient than a CO2 laser. The electro-optical conversion rate of a CO2 laser cutter is only 8%-10%. However, that rate of a fiber laser cutter can be as high as 30%. In other words, the overall energy consumption of a metal laser cutting machine is 3-5 times lower than that of a CO2 laser cutter. So the fiber laser machine is more energy-efficient.

3. Cutting ability

Fiber laser has the property of short wavelength, thus improving the absorption of the beam by the cutting material. The fiber laser beam is more suitable for transmission in the fine and soft fiber. So it is more flexible and easier to maintain than the CO2 laser transmission with mirror reflection. A 3KW fiber laser cutting machine is equivalent to a 4-5KW CO2 laser cutting machine in terms of cutting capacity and speed. So the metal laser cutter can greatly reduce operating costs. 4. Maintenance cost As a CO2 laser cutter has a complex laser structure, its subsequent maintenance cost is relatively high. The CO2 laser cutting system requires regular cleaning, and the reflective lenses also require frequent cleaning and calibration. Due to the CO2 gas purity, you need to maintain the resonant cavity regularly. However, a CNC metal laser cutter doesn’t require the above maintenance, saving a large amount of cost.

4. Application

Fiber laser cutting machine is mainly for metal cutting, such as mild or carbon steel, stainless steel, aluminum and its alloys, brass, copper, titanium, etc. While the Co2 CNC laser cutting machine is good at cutting non-metallic materials. It is now a solution to cut or engrave acrylic, wood, MDF, glass, etc.


iGOLDENCNC, Your best choice

GOLDENCNC, as a professional laser machinery application solution supplier, covers flatbed fiber laser cutting machine, metal sheet and tube fiber laser cutter, metal tube fiber laser cutter, protective fiber laser cutting machine, CO2 laser engraving cutting machine, fiber laser marking machine, CO2 laser marking machine, UV laser marking machine, handheld laser welding machine, handheld laser cleaning machine and so on.

Strict Quality Control System

Each machine needs to go through 13 inspection processes from order to delivery. Advanced testing equipment are used, such as: dynamic balance tester, CNC high precision machining machine, 3D measuring machine; iGOLDENCNC has established a complete and strict quality control system, which controls the product quality from raw materials, production, and delivery, including 48-hour running test and 72-hour aging test, to ensure the excellent quality of our machines.
