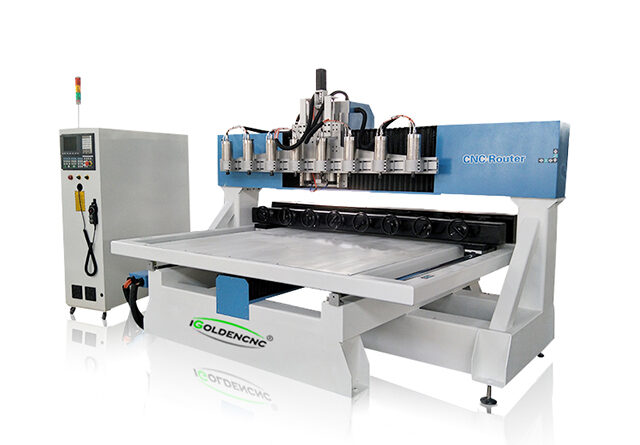

4 Axis Rotary CNC Wood Router

Complete equipment for processing wood panels

As the saying goes, “If you want to do a good job, you must first sharpen your tools.” Furniture production is inseparable from woodworking machinery and woodworking knives. This article will take stock of some common woodworking equipment for you, and introduce them to their functions, methods, and precautions.

  1. Woodworking planer

There are many types of planers, according to the process use and structure: flat planer, pressure planer, four-sided planer, polishing machine, etc.



Planing is used to accurately plan the reference surface of the workpiece blank, and it can also process the surface adjacent to the reference surface as an auxiliary reference surface. There are manual feed and mechanical feed, as well as single-axis and double-axis points; It is used to process the opposite surface that has been planed to the reference plane to be smooth and parallel to the reference plane. The thickness and width of the workpiece can be fixed by the planing process, all of which are mechanically fed; the four-sided planer is used for simultaneous processing in one feed. The four sides of the workpiece are processed by mechanical feed and multi-tool axis, so the efficiency is high;

3 Axis Single Head CNC Router Machin

  1. Woodworking edge banding machine

One of the woodworking machinery, which belongs to the solid wood machinery category. The edge banding machine, as the name suggests, is used for edge banding. The edge banding machine generally uses a straight edge banding machine. Of course, there are also special-shaped edge banding equipment.



The automatic woodworking edge banding machine can complete pre-milling – gluing – cutting – front and rear alignment – upper and lower trimming (rough trimming) – upper and lower finishing trimming – upper and lower scraping – polishing and many other processes.



The edge banding machine is suitable for straight edge banding and trimming of medium density fiberboard, block board, solid wood board, particle board, polymer door panel, plywood, etc. Pressing, flushing, chamfering, rough trimming, fine trimming, scraping and polishing, etc., the edge sealing is fine, smooth, and feels good, and the sealing line is straight and smooth.

4 Axis CNC Milling Machine

  1. Woodworking cold press

The cold press is used to press furniture panels, wooden doors, various panels and furniture for leveling and shaping.



The working form of woodworking cold press can be roughly divided into: screw type and hydraulic type. Generally, the performance of hydraulic cold press is better in all aspects.



Because the working noise of the hydraulic cold press is small and the lifting speed is fast. However, if the hydraulic system is rough, oil leakage will occur, and a good quality hydraulic system can better solve the problem of oil seals.

edge banding machine

  1. woodworking milling machine

The milling machine is a universal type of equipment, which can complete the processing of various processes, but it is mainly used for the processing of the curve, straight line and forming surface of the part shape. In addition, the milling machine can also be used for tenoning, profiling and other operations. It is also used for plane processing such as sawing. It is one of the indispensable equipments in the processing of furniture and wood products.



According to the number of spindles, milling machines include single-axis milling, dual-axis milling, and multi-axis milling. Among them, single-axis vertical milling machines are the most commonly used type of milling machines. They are divided into upper-axis and lower-axis types, and most of them use manual feed.



In simple terms, single vertical milling is only used for milling straight lines, and double vertical milling is used for milling arcs. If your material is concave, then you use the right knife to mill the right half, and the left knife to mill the left half to prevent stubble from flying the wood. If your material is convex, the right knife is used to mill the left. half, the knife on the left mills the half on the right.



When it comes to milling machines, we must mention milling cutters. Milling cutter is the most diverse and widely used type of tool in wood cutting. It is widely used in furniture manufacturing, wooden floor production and other wood product production. Since milling cutters are used in many wooden parts processing, there are many types of milling cutters. According to the different clamping methods of the milling cutter on the machine tool spindle, the milling cutter can be divided into a set milling cutter and a shank milling cutter



The set milling cutter is provided with a set hole, which can be set on the spindle through the tool chuck or directly; one end of the shank milling cutter has a blade, and the other end is a tail shank.



Here is an introduction to the shank milling cutter. Most of the shank milling cutters are installed on the upper shaft end milling and portable router. The shank diameter is 6, 12, 16, 1/4″, 1/2″ and other specifications, the diameter of the cutter head is 3~26, and the blade is generally integral (or integrally welded). The assembly milling cutter refers to the milling cutter formed by clamping the cutting insert or the cutter teeth on the cutter body by means of mechanical clamping.



Five, woodworking engraving machine

It is mainly used for woodworking, crystal, copper, aluminum, etc. make it more aesthetically pleasing. There are many types and brands of woodworking engraving machines, resulting in uneven prices. The style is customized according to customer needs. It can be applied to wood industry, advertising signs, furniture manufacturing, toy and gift manufacturing, decoration industry, PCB manufacturing, etc.



Six, woodworking CNC machine tools

Industrial CNC machine tools refer to wood processing machine tools controlled by digital signals, referred to as CNC machine tools. If the CNC machine tool has more comprehensive functions (milling, drilling, planing, etc.), it is called a machining center.



CNC machine tool is the product of the perfect combination of modern computer technology and traditional machining. It can realize the real-time, parallel, network, digital and three-dimensional production of design and manufacturing. It can be said that it is the development direction of modern furniture and wood products processing machinery.



According to their different processing techniques, there are CNC milling machines, CNC drilling machines, and multi-functional CNC machine tools (machining centers); according to the number of spindles, there are single-axis, 2-axis, 4-axis, 6-axis, etc.; according to their different shapes and structures, there are gantry type, Gantry type, cantilever type, C type, etc.



  1. Jigsaw

Jigsaws are reciprocating motions. There are two types of hand-held jigsaws: vertical and horizontal. It is mainly used for sawing and the arc part of the curve of the workpiece.



The bottom plate of the vertical jigsaw can be adjusted arbitrarily between 90° and 45° with the saw blade. When sawing straight edges, the bottom plate is perpendicular to the saw blade, and when sawing beveled edges, adjust the bottom plate to the desired angle. When operating, hold the handle with both hands and slowly push the cutting along the line.



The horizontal jig saw has no bottom plate, and the blade is parallel to the motor shaft. When operating, hold the handle with the right hand and hold the body with the left hand to saw along the line.



Eight, woodworking sanding machine

Grinding is one of the widely used processes in the production of furniture and wood products. It uses abrasives to finely process the machined surface of parts or components. Grinding is often used for: workpiece size and thickness grinding; workpiece surface finish grinding , At the end of the decorative surface brushing processing, etc. In most cases, grinding is the last step in the machining process for furniture and wood products.



At present, the most commonly used sanding equipment is broadband sander, which can be divided into single-belt, double-belt and multi-belt sander according to the number of abrasive belts; according to the processing position, it can be divided into top grinding, bottom grinding and double-sided grinding Sanding machine; according to the grinding direction, it can be divided into longitudinal grinding type and vertical and horizontal grinding type; according to the sanding method, it can be divided into two types: contact type and platen type. According to the feeding method, it is divided into 2 types: crawler feeding and roller feeding. Track Feed: Mainly used for sanding of plywood, blockboard and window frames. Roller feed: mainly used for sanding MDF and particleboard.
