4 Axis Woodworking CNC Router with Rotary Axis

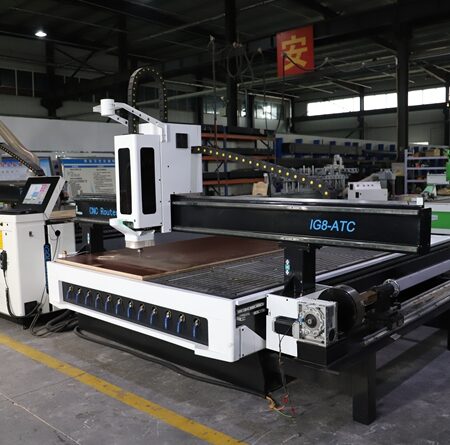

ATC 4 Axis Wood Cnc Milling Machine With Rotary Axis

CNC Router With 4th Axis Rotary Table,The entry-level 4 axis woodworking machine with 4th right rotary axis, perfect for carving both on flat and cylinder, the low-cost model designed by iGOLDENCNC, combined with a competitive set of configurations.Rotary axis CNC router is also called 4th axis CNC router who refers to these wood carving machine with rotary device And it mainly processes cube or cylindrical arts.

4 Axis Woodworking CNC Router4 Axis Woodworking CNC Router4 Axis Woodworking CNC Router

4 axis woodworking machine4 Axis CNC Foam Cutting Machine

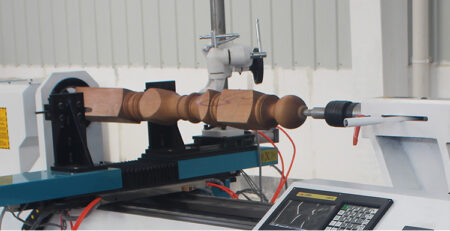

Rotary axis CNC router is also called 4th axis CNC router who refers to these wood carving machine with rotary device. And it mainly processes cube or cylindrical work pieces. During the processing of the 4th axis CNC router, it is not necessary to repeatedly rotate and process the work piece manually to reduce the number of clamping times and complete the processing of the work piece at one time. Compared with ordinary 3 axis cnc router, 4th axis CNC machines reduce manual workload and improve production efficiency. In addition, since the tools of the rotary axis can be processed in layers, it is possible to ensure higher processing quality. Besides that the rotary axis can also realize the processing requirements of local processing without being limited by the size of the object.

4 axis woodworking machine application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Features of 4 axis cnc router with rotary:

1. Integral cast iron frame, more durability.

2. Imported all steel hiwin linear guide rails with high precision, ensure machine frame much stability and durability.

3. High accuracy tbi ball screw from taiwan, assure machine frame of better precision.

4. Handle controlling, not occupying computer resource, one computer can control several equipments.

5. High-performance driven motor to ensure that the machine high speed and accuracy.

6. Be compatible with various cadcam software as type3artcamcasmateartcut etc.
